Reducers are used in a wide range of applications in modern machinery such as cement trucks, mast cranes, container cranes, jib cranes, Ferris wheels and more. Cad design engineers often encounter situations where the internal structure of the assembly needs to be reflected in the drawing. In this case, some parts structure needs to be processed so that internal results can be displayed and checked early. Make adjustments and adjustments to ensure the smooth completion of the entire production cycle. The following 3D CAD software is used as a demonstration tool to introduce how to perform related setting operations and improve work efficiency.
Reducer

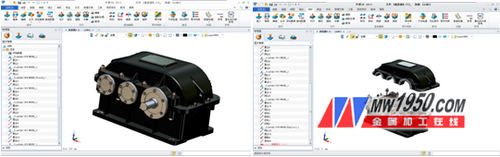

We will carry out the assembly drawing, the internal structure view and the top cover in the drawing (above).
Assembly drawing

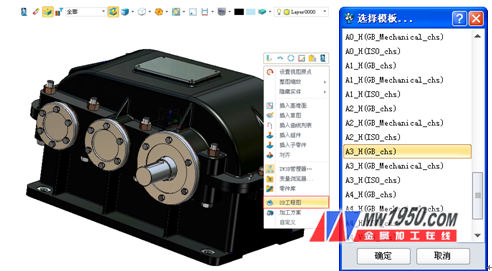

1) Right click on the workspace, select “2D Drawingâ€, and select the frame to enter the drawing module (below)

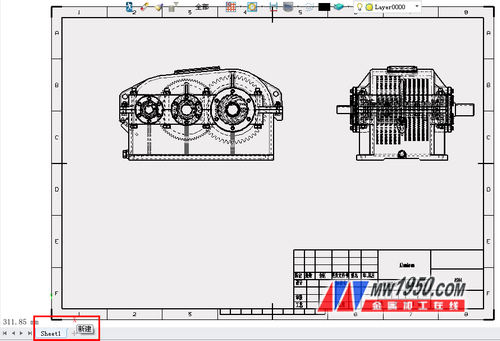

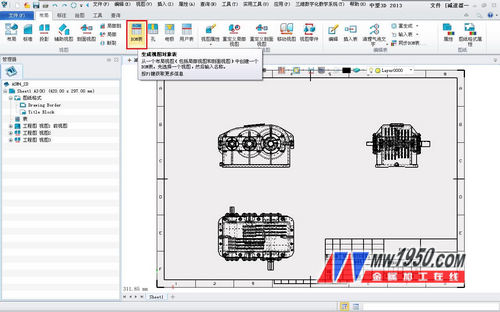

2) Generate a final assembly drawing
2. View the internal structure by hiding the top cover
There are two ways to hide the cover:

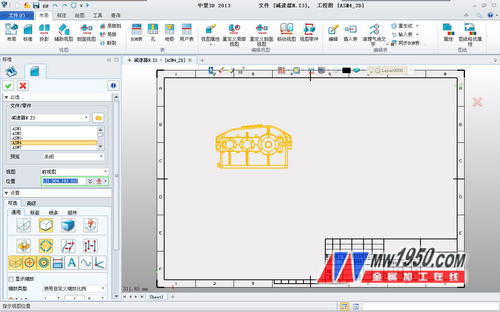

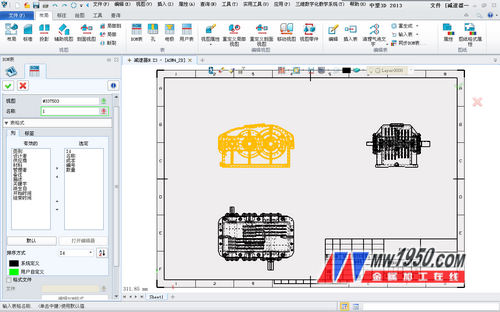

1) Create a new drawing or create a new engineering drawing, and generate the required view as shown in the red box (below)

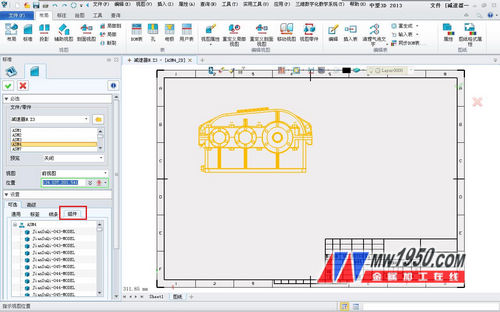

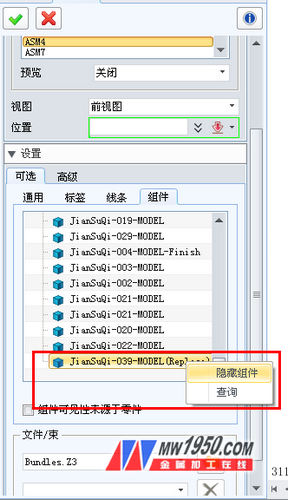

When generating a view, select the component in the dialog box to hide it, as shown in the red box (below)

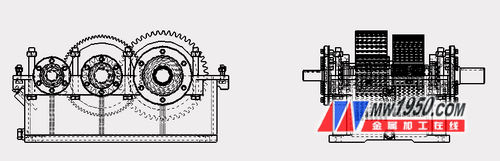

The result is shown in the figure (below)

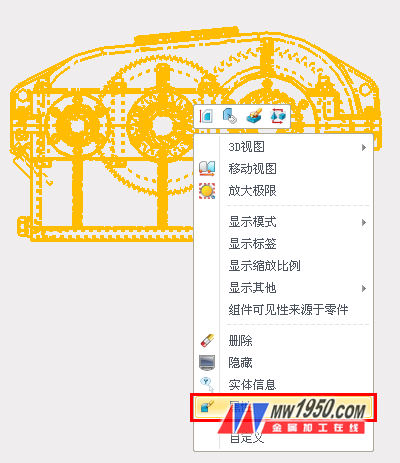

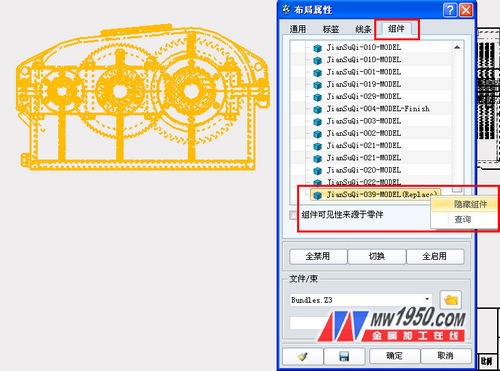

2) directly edit the "property" of the assembly drawing, hide the components of the unwanted display, right click, select "properties", in the property box, hide the components, as shown in the figure, you can also get the results of the above figure. .
Through the above operation mode, cad design engineers can easily realize the display of different components in the assembly drawing with Zhongwang 3D, so that the internal structure of the reducer can be clearly understood. Greatly improve the efficiency and clarity of communication. And its operation is convenient and concise, easy to operate, and can greatly improve the efficiency of drawing. This type of operation is applicable not only to the reducer but also to other similar manufacturing products.
It is worth noting that Zhongwang 3D has recently launched a hand-held functional tutorial training to provide the fastest and easiest learning mode for beginners, from beginners to proficient in a short period of time, and master a 3D CAD software technology. At the same time, in order to help enterprises reduce costs, Zhongwang 3D2013 has added a direct output to the "3D Printer" (Print3D) function, allowing users to quickly and easily perform proofing and quality inspection through 3D printing. The drawings in this article can be downloaded free of charge from the Zhongwang Technology Community.
About Zhongwang 3D 3D CAD/CAM Software
Zhongwang 3D is the preferred brand of 3D CAD/CAM software for military enterprises recommended by the Ministry of Industry and Information Technology. It provides cost-effective 3D CAD/CAM solutions for enterprises, modeling, mold, assembly, reverse engineering, sheet metal, 2-5 axis processing and other functions. The modules are available. Efficient and compatible with other 3D CAD software , easy to learn and use, integrated rich parts library, new learning tutorials and free download of massive quality 3D CAD drawings, so that you can master 3D design and machining programming more easily. Download the latest version now and apply for free 3D CAD/CAM & 3D printing technology training.
