The method of dry hanging stone is a new type of exterior wall decoration construction technology. In the current large-scale building exterior wall decoration is very popular, then what is dry hanging stone? What are the advantages of dry hanging stone? How to dry dry stone? If you don't know, just follow the decoration home decoration network to learn about it.
What is dry hanging stone?

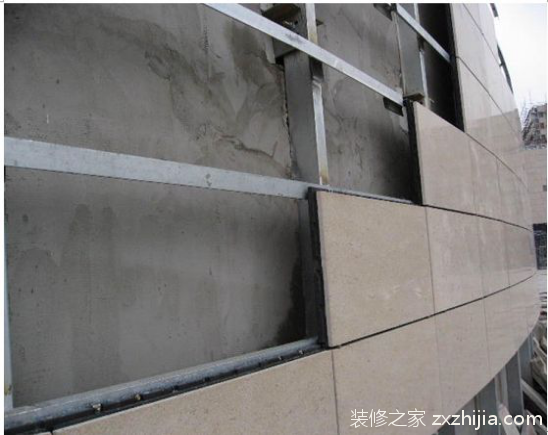

The dry stone hanging method, also known as the empty hanging method, is a new type of construction technology in wall decoration. The method directly hangs the facing stone on the wall surface or hanging on the steel frame with a metal pendant, and does not need to be grouted and pasted. The principle is to set the main force point on the main structure, and fix the stone on the building through the metal hanging piece to form a stone decorative curtain wall.
What are the advantages of dry hanging stone?
1. It can effectively avoid the phenomenon of empty drum, cracking and falling off of the traditional wet-laid process, which obviously improves the safety and durability of the building;
2 , can completely avoid the phenomenon of whitening, discoloration, etc. appearing on the traditional wet-laying process board, which is conducive to keeping the curtain wall clean and beautiful;
3. To improve the working conditions of construction workers to a certain extent, reduce the labor intensity, and accelerate the progress of the project.
How to dry dry stone?
1 , plug-type dry hanging stone
Through the professional opening device, the edge of the porcelain plate is precisely processed into a round hole, the pin is inserted into the hole, and the porcelain plate is fixed on the keel through the connecting member. Due to the opening of the edge of the porcelain plate, it is easy to collapse, the loss of the porcelain plate is large, the construction process is complicated, and it has been eliminated, and it is basically not used.
2 , slotted dry hanging stone
Through the professional grooving equipment, the edge of the porcelain plate is precisely processed into a groove, the hanging piece is buckled into the groove, and the porcelain plate is fixed on the keel through the connecting piece. The disadvantage of the slotted porcelain curtain wall is that the thickness of the porcelain plate is relatively high. Generally, the porcelain plate is not less than 15 mm thick; when the groove is opened, it is easy to collapse and the loss is large; the steel keel needs to be installed, the weight of the building is increased, and the cost is increased.
3 , back bolt type hanging stone
Through the professional drilling equipment, the large and small tapered circular holes inside the porcelain plate are precisely machined, the anchor bolt is inserted into the hole, and screwed into the screw, the bottom of the anchor bolt is completely unfolded, and the tapered hole is matched. A stress-free convex combination is formed, and the porcelain plate is fixed to the keel through the connecting member. The dry hanging panel installation process can also be matched with glass curtain wall or large glass window, metal veneer installation process and the like. At present, the installation of the inner and outer decorative panels of stone in many large public buildings in China takes the construction technology of such dry hanging stone.
The above is what Xiaobian brought to you. Â What is dry hanging stone? How to dry dry stone? Â I believe that everyone has a basic understanding of dry hanging stone after reading this article . If you want to know more about decoration consultation, please click to enter the decoration knowledge channel !
