[China Aluminum Network] vehicle traction power
Aluminium fuel cells can be divided into power type and capacity type. The former is applicable to traction power and applied to vehicles, aerospace vehicles, navigation ships and other fields; the latter is mainly applicable to UPS (uninterrupted power supply), applied to communication base stations, and mobile Charging piles, smart microgrids, etc., as well as emergency power supplies, backup power supplies, signal power supplies, portable power supplies, etc. Aluminium fuel cells can be designed to store batteries and be activated before use. After the end of the service period, aluminum anodes can be removed and replaced with new aluminum anodes. This process is called mechanical recharging. Aluminum anodes are called replaceable. pole. Mechanical refillable aluminum fuel cells have been used to replace diesel and gasoline engines that are unsuitable for certain applications due to quality and noise limitations, and have great potential for application. Here are some examples of applications of aluminum fuel cell systems in the field of vehicles, Dongshen New Energy Technology Co., Ltd.
E2 RPS parallel power supply system

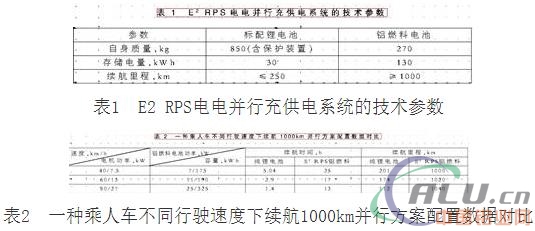

This system has been applied to a brand of SUV (sport utility vehicle) in China and has run 1008km on the standard road. The comparison of the technical parameters with the standard lithium battery is shown in Table 1.
1000km parallel plan configuration data for people driving at different driving speeds
Dongshen New Energy Technology Co., Ltd. performed a test run on a type of passenger car equipped with a pure lithium-ion battery and an E2 RPS aluminum fuel cell. The comparison of the configuration data of their parallel solutions is shown in Table 2, which can be seen from the comparison of the data in the table. The indicators of aluminum fuel cells are significantly better than those of pure lithium batteries.
The aluminum-fueled electric vehicle produced by Tesla Motors releases aluminum hydroxide Al (OH3) once every 400km - 600km, and adds or replaces aluminum fuel with 1600km - 3100km (about 3 months).
Comparison of Vehicle Power Indexes
Dongshen New Energy Technology Co., Ltd. compared lithium-ion batteries, hydrogen fuel cells, aluminum fuel cells, and gasoline as automotive power sources. The advantages of aluminum fuel cells are extremely obvious, and they are particularly prominent in the long-term. In 2016, the Ningbo Materials Research Institute of the Chinese Academy of Sciences developed a graphite-lean cathode kilowatt-class aluminum fuel cell, whose performance has been greatly enhanced.
Aluminium fuel cells can be widely used as traction power for passenger cars, buses, refrigerated trucks, etc., and have also been used as power for all-aluminum pure electric logistics vehicles in China. The LK5045XXYEV6, an all-aluminum box-type pure electric logistics vehicle independently developed and produced by Zhongtong Bus Company, was formally rolled out at the Tongzhou company's Canoe production base at the end of May 2017. This car is a new generation of pure electric logistics vehicle built by Zhongtong Bus Company for the city logistics industry. It has a 6m long body, a 2.9 ton quality of trim, a large total mass of 4.5 tons, a 13.5m3 loading space, and low power consumption. 0.25kWh/km.
Small aircraft and ship drivers
Aluminium fuel cells can be widely used to drive a variety of automobiles, but they can also drive ships and AIP systems (automatic image processing systems) as well as power sources for small aircraft. A two-seater light electric aircraft of a domestic company is driven by an aluminum fuel cell. The aircraft has a wingspan of 14.5m, a length of 6.6m, a large take-off mass of 500kg, a large load of 230kg, a large flying speed of 160km/h, and a target flight time ≥ 2h, and now the world's longest flying electric plane is 45min.
