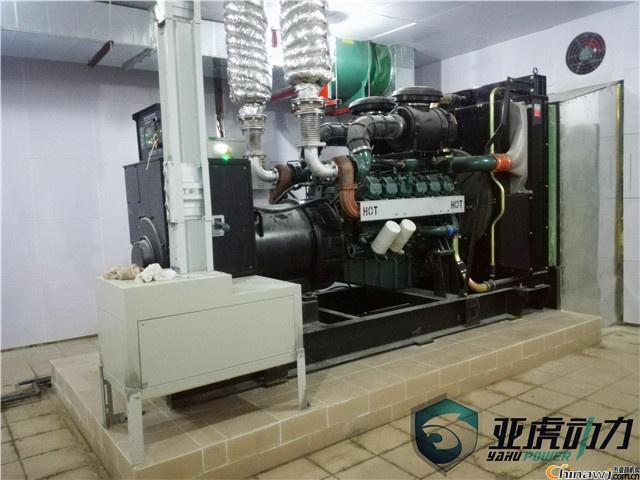

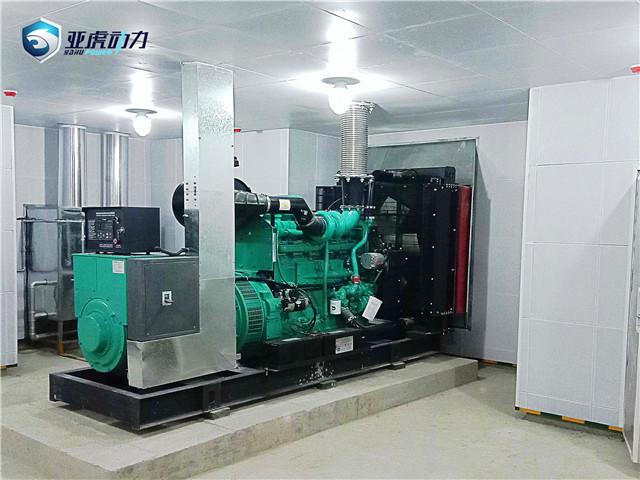

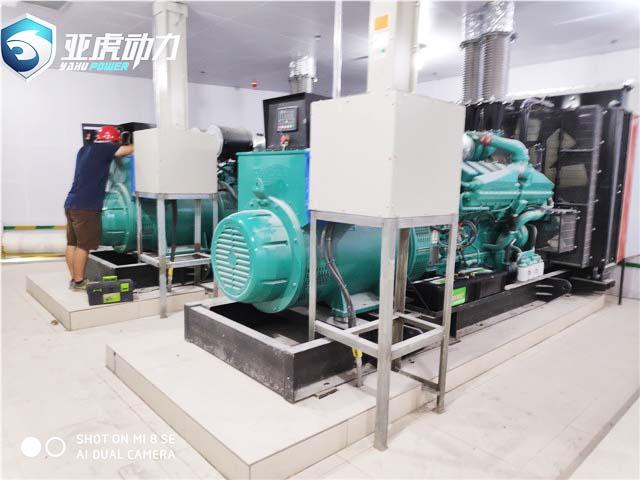

The main functions of the diesel generator room are sound insulation and noise reduction, purification of exhaust gas, blocking most of the noise generated by the operation of the motor unit, and purification of the exhaust gas generated by the operation of the unit. In order not to affect people's daily life, considering the environmental pollution and other issues, it is necessary to make a generator room, so how big should the generator room be, how should it be designed? Yahoo teaches you to calculate: The size of the generator room is mainly determined by the power capacity of the diesel generator set. If the reservation is too large or too small, it will affect the sound insulation effect, so when choosing the size of the engine room, Yahoo Power recommends that you consider a few Elements:
1. Fuel tank: It is necessary to consider the oil consumption of Cummins generator set for 12 hours, so the fuel tank space should be included in the budget.
2. Diesel generator set
The space of the generator set is determined according to the power of the generator set.
Take Yahoo Power-Dongfeng Cummins Generator Set and Chongqing Cummins Generator Set as examples:
20-50kw size (1700-1900) x (700-940) x (1100-1200) (mm).
60-200kw size (2000-3000) x (850-980) x (1100-1550) (mm).
200-300kw size (2900-3300) x (980-1250) x (1500-1600) (mm).
360-500KW size (3550-3800) x (1250-1550) x (1650-2000) (mm)
600-900kw size (4350-4450) x (1630-1830) x (2300-2350) (mm)
1000-1200kw size (5200-5300) x (1830-2260) x (2400-2550) (mm).
1200-1500kw size (6000-7000) x (2200-2600) x (2800-3200) (mm).
2000kw size 8000x3500x4100 (mm).
3. Distribution cabinet
The power distribution cabinet also needs to be considered in the generator room, including the branch cabinet and the control cabinet of the generator set, which are generally calculated by installing the GB standard cabinet, and the size is 700 * 800 * 2000 (mm).
4. Air inlet and air outlet of diesel generator set
The temperature of the generator set can reach 80-90 degrees Celsius when the diesel generator set is in operation. It is necessary to reserve the air inlet and outlet for cooling treatment. If the space of the machine room is small, the undesirable heat dissipation of the unit will reduce the power generation of the diesel generator set and will cause damage to the machine itself.
5. Height
The height of the computer room is also required. It is recommended that the net height below 64kw is 2.5m, 75-150KW net height is 3.0m, 200-400KW net height is 3.0m, 500-1500kw net height is 4.0m-5.0m, and 1600-2000kw net height is 5.0m-7.0m.
Based on the above equipment size reference, you can roughly estimate how much space the generator room is. In addition, it is recommended that users reserve enough space for maintenance and repair of the generator set.
================================================== ================================================== ======
