HJL-93 series digital AC three-phase current relay This series of current relays is used as the starting element for the overload and short circuit protection of generators, transformers and transmission lines.
HJL-93 series digital AC three-phase current relay
HJL-F93/BY digital AC three-phase current relay, HJL-F93/AY digital AC three-phase current relay, HJL-F93/B digital AC three-phase current relay, HJL-F93/A digital AC three-phase current Relay, HJL-93/BY digital AC three-phase current relay, HJL-93/AY digital AC three-phase current relay, HJL-93/B digital AC three-phase current relay, HJL-93/A digital AC three Phase current relay
1. Purpose This series of current relays are used as starting components for overload and short circuit protection of generators, transformers and transmission lines.
2. Mounting structure Rail mounting 9 housing, please refer to the external dimensions for specific dimensions.
3. Features
(1). Use 3-bit dial to set
(2). Setting range 0.2A~6A, grade difference 0.01 A
(3). Delay time: 0~99.9S
(4). Auxiliary power supply 85~260V AC and DC universal
(5). 50Hz, 60Hz universal.

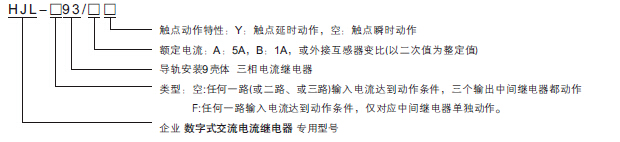

4. Product model
5. Technical parameters
(1). Rated current, setting range, return factor, auxiliary power supply
name | model | Rated current (A) | Long-term permission Turn on current (A) | Instantaneous permission Overload current (A) | Overall range (A) | Level difference (V) | Return coefficient | Auxiliary power |
Current relay | HJL-93/Aâ–¡ | 5 | 6 | 20 | 0.2~6 | 0.01 | 0.9~0.95 | 85-265V AC and DC universal |
HJL-93/Bâ–¡ | 1 | 4 | 20 | 0.05~1.2 | 0.01 |
(2). Operating frequency: 50Hz, 60Hz sine wave.
(3). Action characteristics:
a. Instant action:
HJL-Q93â–¡ current relay, when any one (or two, or three) input current is higher than the dial setting value, the three output intermediate relays will immediately operate.
HJL-F93â–¡ current relay, when any one input current is higher than the dial setting value, only the intermediate relay acts immediately.
b. Delay action:
Similar to the above-mentioned instantaneous action characteristics, the only difference is that when the operating condition is reached, the output intermediate relay does not act immediately, and the action is only after the delay time set by the second group of dials. If the operating condition disappears within this delay time, it will no longer operate.
(4). Return time: The three-phase current drops from the input 1.1 times setting current to 0.5 times the setting current, and the return time is less than 30ms.
(5). Setting error: no more than 2%, the same relay is at the same setting current, the action consistency is not more than 1%.
(6). Power consumption: less than 5W.
(7). Contact capacity: long-term connection 5A, at 250VDC, τ=5ms maximum disconnectable 50W DC sense load: 250VAC COSΦ=0.4 can disconnect 250VA AC load.
(8). Insulation resistance: Between the relay case and the exposed live terminal, measured with a megohmmeter with an open circuit voltage of 500V, the insulation resistance is greater than 300MΩ.
(9). Medium strength: between the relay case and the exposed live terminal, it can withstand 2KV (effective value) 50Hz test voltage for 1 minute, no breakdown, no flashover phenomenon.
6. Conditions of use
(1). Ambient temperature: -15 ° C ~ 55 ° C:
(2). No conductive gas, no corrosive gas, no strong vibration;
(3). Working position: arbitrary;
(4). Magnetic field strength: less than 0.5mT;
(5). There must be no rain or snow, and there are anti-fog, dust-proof and sand-proof facilities.

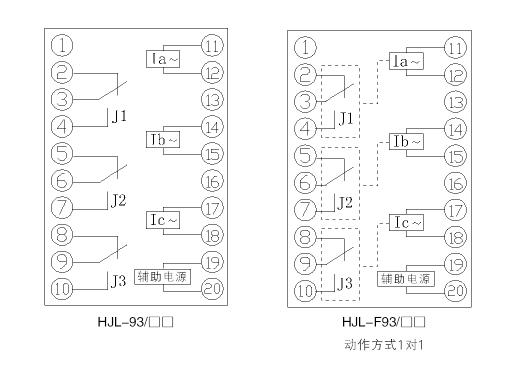

7. Wiring diagram
