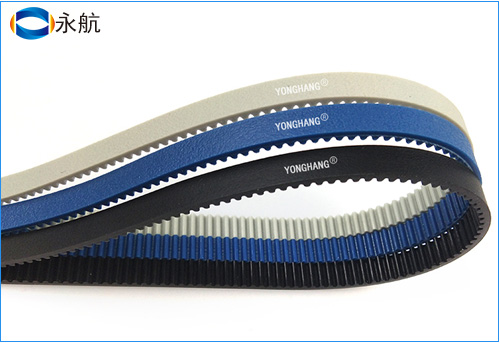

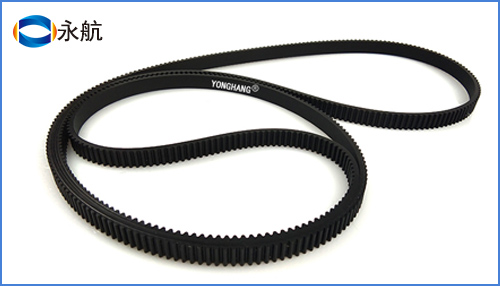

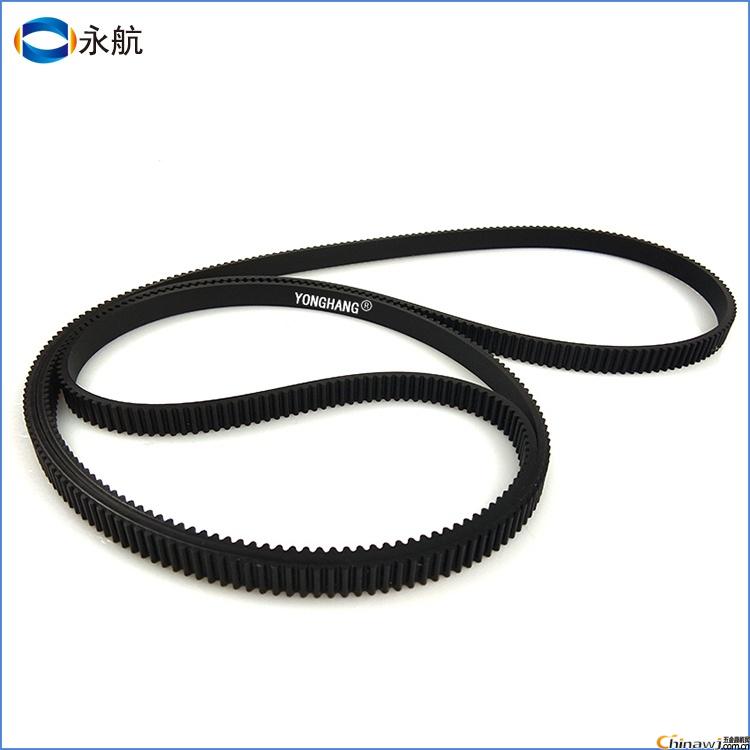

Why is the same pu timing belt, but the tension of different types of timing belt is so different? What factors affect the pulling force of S3M PU timing belt? According to the years of production and sales experience of Yonghang transmission belt manufacturers, the editor summarizes the following two points:
1. The tension of the S3M PU timing belt is affected by the tooth shape:
Timing belts with smaller tooth shapes are usually matched to smaller diameter timing wheels. Timing belts with smaller circumferences usually use S3M, 3M LH and other tooth shapes, instead of using large toothed belts, otherwise the circumference width is larger The belt will not use small tooth shapes like S3M, 3M LH, etc .; therefore, the smaller the tooth shape, the smaller the pulling force of the timing belt, the larger the tooth shape, the greater the pulling force. You can also choose different types of timing belts for your equipment according to this law.
2. The tension of the S3M PU timing belt is affected by the diameter of the steel wire:
There are two types of PU timing belt wire diameter, one is 0.9mm and the other is 1.2mm. 1.2 Steel wire is generally used for timing belts with relatively high tension requirements. At present, most of the larger tooth types are equipped with 1.2 steel wires, such as 14M.AT20, XH and other large tooth shapes, which are usually used in industries with strong pulling force, such as ceramic edging machine, glass edging machine, brick and tile equipment Wait, on the contrary, the small tooth shape that does not require high tensile force uses 0.9mm steel wire diameter, which can be seen that the 1.2mm steel wire diameter synchronous belt is much stronger than the 0.9mm steel wire diameter synchronous belt!
>>> Yonghang Transmission Belt Company has been focusing on the R & D and production of S3M PU timing belts for 10 years, using the manufacturer's *** model, eliminating the middleman to earn the difference, saving indirect costs by more than 60%, providing one-stop customized services, and providing 6 Monthly free warranty service and technical support! Welcome to log in to http://www.yonghang.com for more information, Yonghang will serve you wholeheartedly! Article copyright: Yonghang Transmission Belt Company, please indicate the source when reprinting, thank you for your cooperation!
================================================== ================================================== ======
