The battery defect/color sorting machine is mainly used for automatic sorting of the color and defects of the battery (front and back), and realizes the color separation and defect (front and back) test sorting function of the battery sheet, thereby reducing the artificial contamination of the wafer. Increase productivity and productivity.
1. Equipment use The battery defect/color sorter is mainly used for automatic sorting of the color and defects of the battery (front and back), and realizes the color separation and defect (front and back) test sorting function of the battery. Offline feeding method, color and defect test of the battery piece, the unloading unit will lower the battery piece to the corresponding level of the lowering box according to the test result, and manually take the piece package to reduce the manual work intensity and reduce the manual operation. Fragmentation rate reduces artificial contamination of wafers and increases productivity and productivity.
2. Applicable chip specifications 6" 156 & 156.5 (±) 160~200μm
3. Appearance Dimensions 4880mm (L)*1420mm (W)*2050mm (H)
4. Equipment capacity and compatibility Equipment capacity ≥ 3000 pieces / hour (excluding manual operation time)
5. Disqualified sheet processing Fragmentation rate: ≤ 0.1% except for wafer defects
6. MES system optional
7. Equipment operating parameters Uptime ≥ 98%
Mean Time Between Failure (MTBF): >200 hours Mean Time to Repair (MTTR): <1 hour Downtime: ≤1%
8. Equipment service life >10 years (excluding consumable parts)
9. Provide information Operation and Maintenance Manual: Operation Manual, Maintenance Manual Drawings: Mechanical Drawings, Electrical Drawings Other Materials: OEM Manual, Site Confirmation Layout, Packing List
10. Safety and environmental protection Mechanical and electrical systems with safety emergency stop and stop functions Electrical control cabinet wiring complies with national safety regulations System grounding equipment Acoustic noise 11. Detection sorting category 1) Color detection sorting category

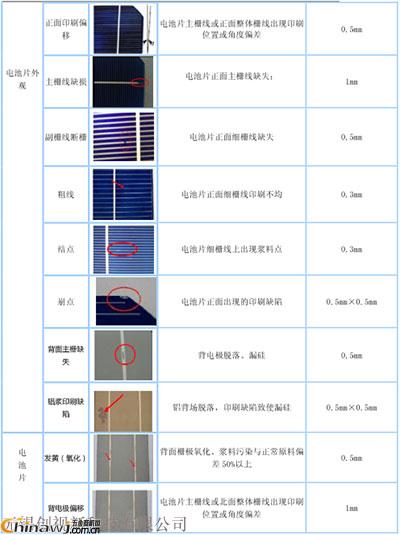

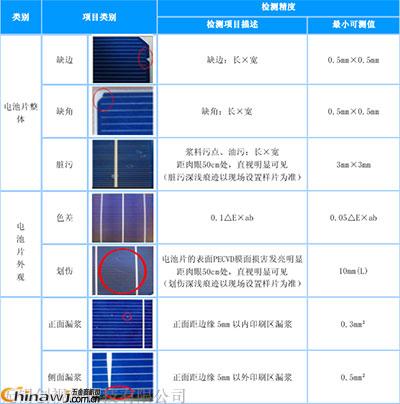

The color classification in the normal blue film can be set to 3 to 4 kinds of sides. The red and blue pieces need to distinguish the direction of the red side (up, down, left, and right). The gray piece is placed in a bin. Sheet and black silk flower, placed in a bin 2) defect detection sorting category
12. Cell color / defect sorter live video
