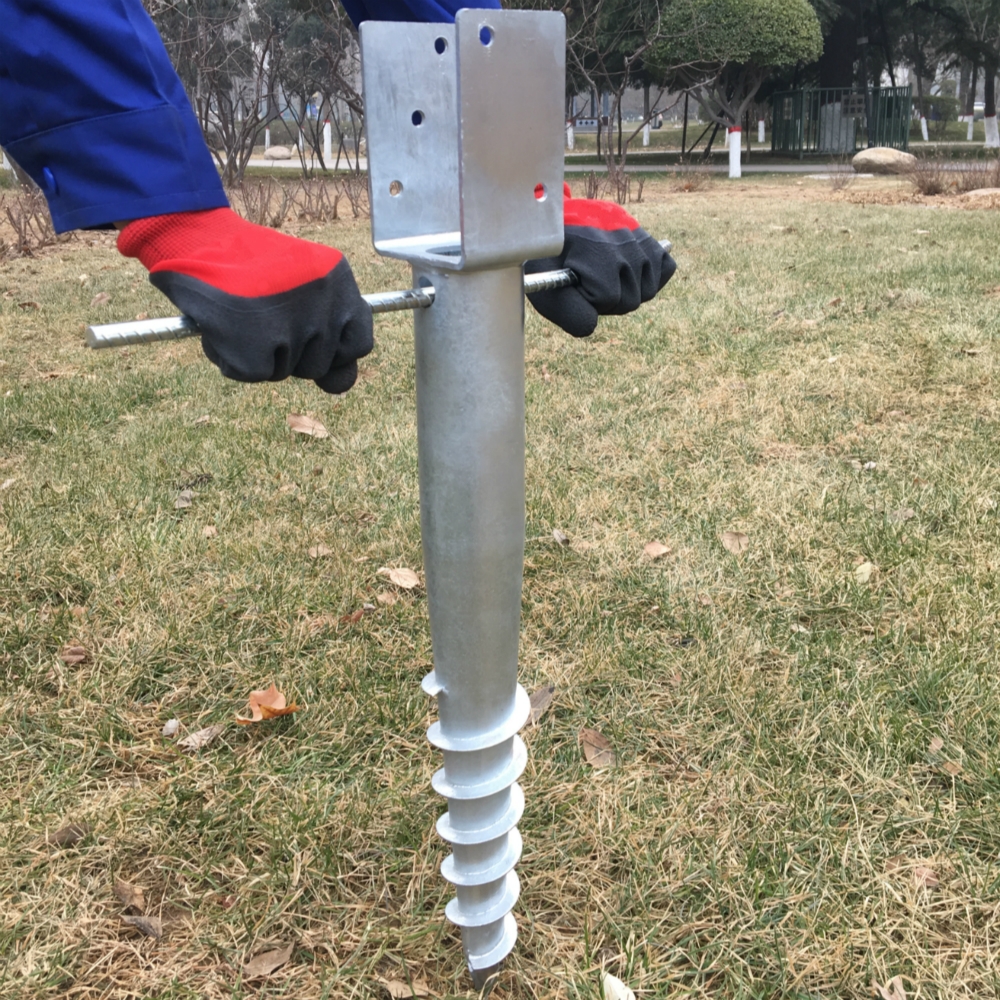

Step1: Open the complete package and check if the Ground Screw and Accessories good. Put the metal bar through the hole of pipe and turn metal bar to make ground screw spirals into the soil.

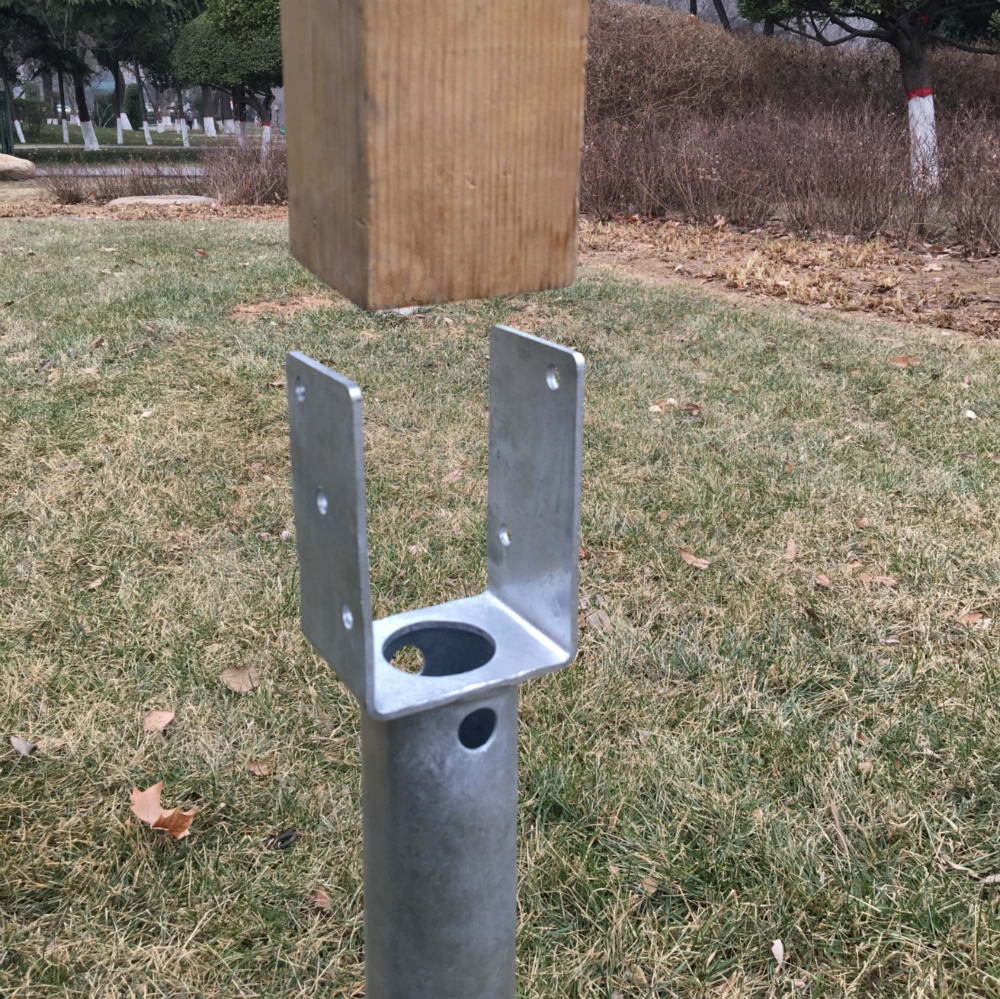

Step2: Check if the size can put your timber pile.

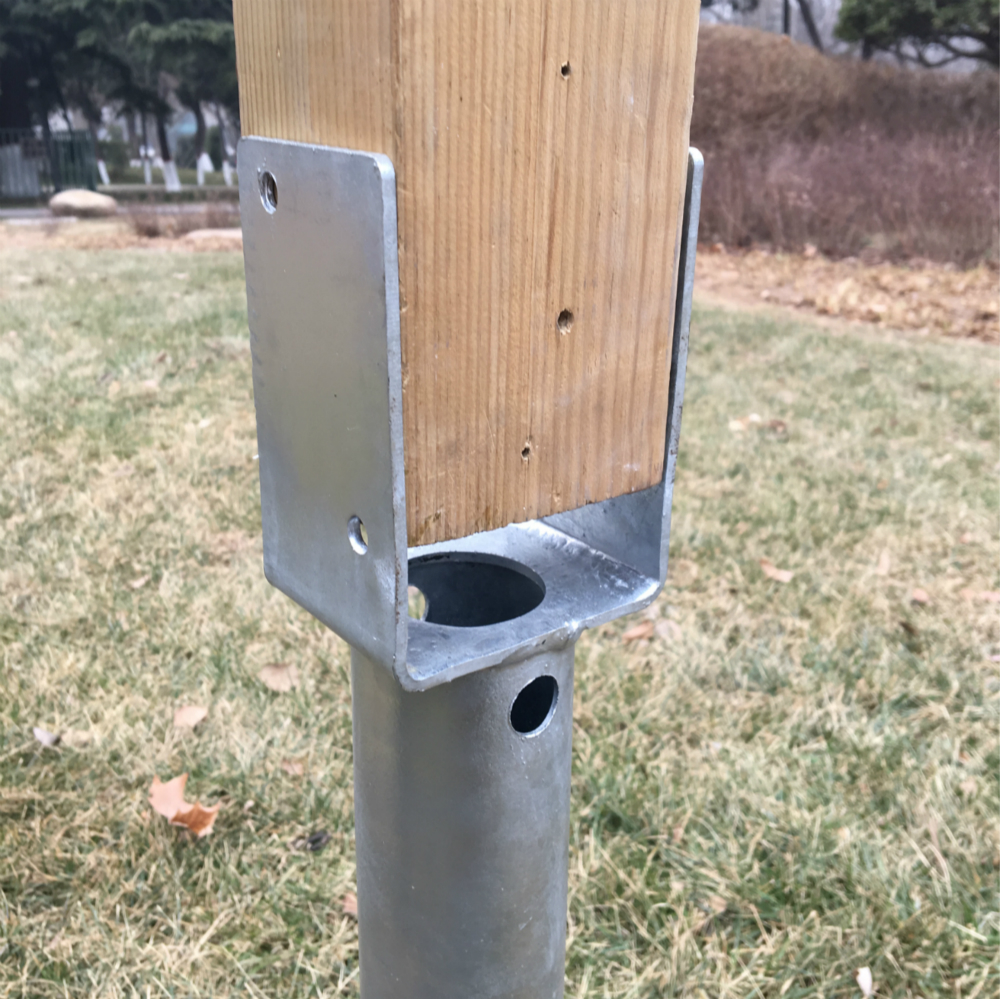

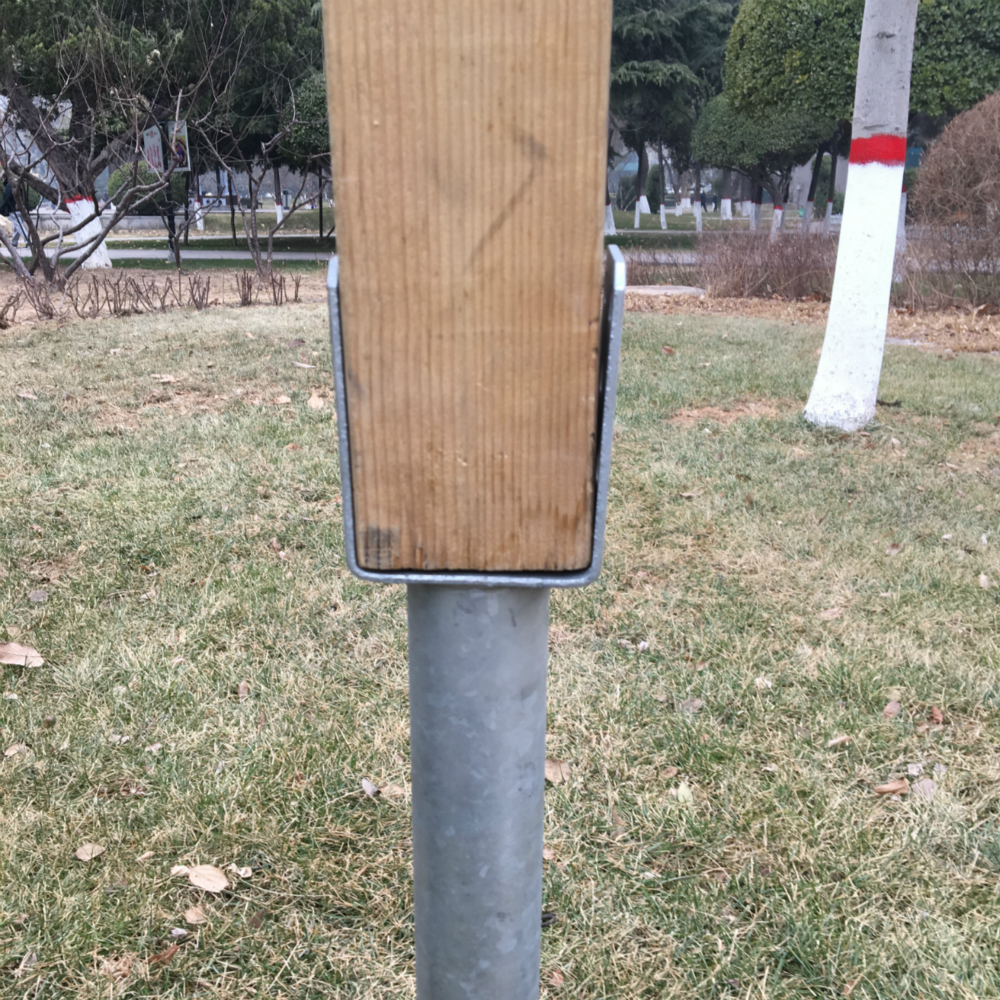

Step3: Put timber pile into U flange and fixed.
Step4: Install bolts and finished.
Features:
1.HOT dipped galvanized or Q235 Steel, with excellent outdoor and marine environment protection
2.Compact for those smaller areas
3.Provides shading for your car or backyard needs
High strength galvanized steel structure, able to withstand 110mph wind, with Aluminum and Stainless steel supports
for solar panels.
4.Configuration: Single vehicle carport, with single cantilever side support gives aesthetically pleasing appearance.
Benefits of Using Honde Solar Carport Mounting Solutions:
Standard installations maintain 8'-6" minimum clearance
Three parking spots spanned between posts
Custom designs available
Foundation and installation options available
Readily tailored to fit different modules and parking lots
Industry-leading 20-year warranty on all our carport installations
Water control with decking available
No field welding, drilling, or other on-site fabrication
Multiple coatings options:
Hot dipped galvanized
Epoxy coated
Wide selection of pre-engineered designs:
Single-slope structures
Double-slope structures
Inverted design
Solar Mounting System For Carport
Solar Mounting System For Carport,Carport Solar Pv Mounting System, Solar Power Mounting System For Carport,Mounting System for Solar Panel
