(1) The load capacity of the selected pan/tilt is greater than 1.2 times the actual load. That is to say, the sum of the weights of all the equipment on the gimbal should be less than the load capacity of the gimbal. If the gimbal is fully loaded or overloaded, it can avoid strong work, but it is inert when starting, especially when it is rotated vertically. Greatly affected the inspection effect.
(2) When the pan/tilt is stopped, it should have better self-locking performance, and the return angle should be less than 1 when braking.
(3) When the indoor pan/tilt is at maximum load, the noise should be less than 50dB.
Protective cover <br> The device used to protect the camera is called a protective cover. There are indoor and outdoor points. The main function of the indoor protective cover is dustproof. In addition to dustproof, the outdoor protective cover plays a major role in protecting the camera in harsh natural environments (such as rain, snow, low temperature, high temperature, etc.). jobs. This not only requires a strict sealing structure, but also has a wiper, a sprinkler, etc., and has a function of heating and cooling. This determines that the price of the outdoor shield is much higher than the indoor shield. When selecting the protective cover, it should also be noted that the nominal size of the protective cover is the same as the nominal size of the camera, that is, the 1/3" camera uses a 1/3" protective cover. If it is difficult to be consistent, a large-size protective cover can be used with a small-sized camera; otherwise, it can't.
The bracket is used to fix the components of the camera, and is wall mounted, hoisted, and the like. The choice of the bracket is relatively simple, as long as the load capacity is greater than the total weight of the equipment installed thereon, otherwise the bracket deformation is likely to occur, and the pan/tilt rotates to cause jitter, which affects the quality of the monitored image.

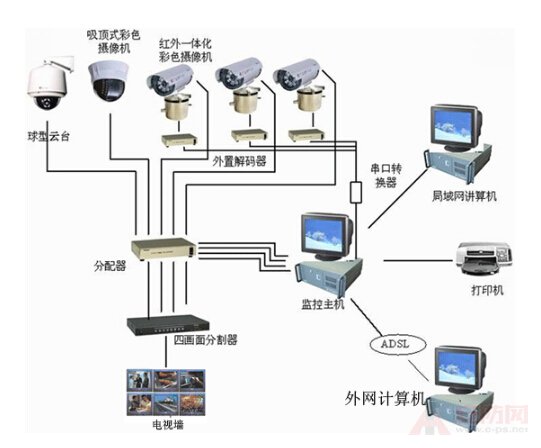

Control Decoder <br> In a TV monitoring system with a pan/tilt, motorized lens and outdoor enclosure, a control decoder must be provided. In this way, the corresponding buttons of the keyboard can be manipulated in the control room to complete the control of each action and function of the front end device. The control decoder must be the same brand as the system host. This is because the communication protocol and coding method of the control decoder produced by different manufacturers and the system host are generally different, unless a control decoder specifically describes the device and a certain brand in the manual. The host is compatible, otherwise it must not be used.
About high speed Door Accessories:
1.Driving system: High Speed Door Servo System motor and control, motor SNMA / SEJ +reducer+flang+encoder+control box
2.Other accessories: Middle aluminium bar, bottom aluminium bar, aluminium vertical track, stainless steel vertical track, brushes,round nylon strip, PVC roll, rolling steel tube complete, drum be;;s for rolling tube, side end covers, stainless steel cover, steel tubes, air bag sensor system, safety light beam, Microwave sensor 24 Gigahertz,PVC welding machine, smoke and fire sensors, PVC transparent window, magnetic loop, photocell, remote control, manual push button, sound warning alarm Led lamp traffic light
For some main accessories, here is detain introduction:
1).24G radar sensor:
Brand: Hofic
Technology: Microwave processor
Maintain time: 0.5s
Protection: IP54
Transmitting frequency: 24.125GHz
Maximum installation height: <5meter
Transmitting power density: <5mw/cm2
Power consumption: <1W(VA)
Installation angle: 0-90°(lengthways) -30-30°(crosswise)
Supply voltage: AC&DC 12V-30V
2).Photocell:
Approval CE & ISO9001
Power supply AC/DC 12-30V
Static current 25A
Action current 40mA
Mounting distance Max 10m
NO or NC contact Done by NO./NC. contact selection
Working environment temperature -42℃ to +45℃
Working environment humidity 10 to 90%RH
Appearance dimensions( controller) 123*50*32mm(L*W*H)
Appearance dimensions(Magic eye head) 19*13mm(L*D)
3). Remote control
Operating Voltage: AC220V/50HZ+-20%
Transmit power:≤100mW;Super regenerative module, strong anti-interference
Operating temperature:-30℃-+70℃
Working frequency: 433MHZ;transmitter 1527, millions of encoding chip
Accept sensitivity:≤110dB
Manipulation method: electric remote control
Configure the quantity: Wireless number; factory configuration transmitter two. Can be equipped with PT2272 digital decoder chip
Configure the function: Up, down, stop, anti-lock full-featured reproduction
4). Magnetic loop
Voltage: 12V AC/DC +-10% 24V 115V AC+-10% 230V
Power: <2VA
Continued electrical output: 7A / 250V AC
Frequency range: 20 to 200K Hz
Response time: infinity (factory setting) or adjust maintain time
Sensitivity: 0.01% to 0.1% divided into 3 levels
Protection level: IP30
Electromagnetic compatibility (EMC) Complies with EM50081-1 and EN50082-2
Detection loop inductance: the limit of 40uH to 100uH ideal value 80uH to 300uH
Operating temperature: -25 ℃ to 70 ℃
Storage temperature: -40 ℃ to 85 ℃
Relative humidity: <90% non-condensing
Temperature compensation: automatic compensation up to 50 ℃ / h
Connection type: 11 pin DIN rail socket
Dimensions: 41 * 78 * 85 mm (width * height * length)
Weight: 250 grams
5). manual push button
This exit switch button is made of ABS and has built-in indicator light make it looks more elegant and fashionbale. It can be widely used in public entrance gates, public door, home, office, hotel, etc.
Door Exit Button Push To Exit Switch Door Opener For Access Control Security
Main Feature
Fashionable appearance
Made of ABS Plastic
Easy to install and operate
Used for access control
Specification
Mechanical Life: 500,000 test
Material: Plastic
6). Limit switch encoder
Voltage: DC5V-24V
Output voltage: high voltage≥85%Vcc, low voltage≤0.5V
Maximum mechanical speed:6000rpm
Anti-vibration: 50m/s,10-200HZ,XYZeach way 2 times.
Current consumption:≤30mA
Response frequency: 0-100KHZ
Protection: waterproof,oil proof,dust prevention, IP54
The output code system: binary code
Operating life: MTBF≥30000(+25℃,2000rpm)
Rotational inertia:4.0x10-8kgm²
Maximum load:radial direction20N
Axial direction:10N
Weight: about 0.4kg
